Advanced Setting Examples

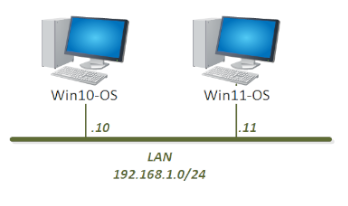

IT Essentials Pod

pod.auto.net.supported=1
pod.auto.net.host.setup.supported=1
pod.auto.net.host.teardown.supported=1

############################################

vswitch.0.name.include.pod_id=1
vswitch.0.name.suffix=ITE8_VSWITCH
vswitch.0.ports=4

vswitch.0.portgroup.0.id=lan
vswitch.0.portgroup.0.name.include.pod_id=1
vswitch.0.portgroup.0.name.suffix=ITE8_LAN_PG
vswitch.0.portgroup.0.vlan.mode=TAGGED
vswitch.0.portgroup.0.vlan.id=1
vswitch.0.portgroup.0.allow_promiscuous=1
vswitch.0.portgroup.0.forged_transmits=1
vswitch.0.portgroup.0.mac_changes=1

############################################

# Win10-OS
pc.1.name=Win10-OS
pc.1.target_resolution.width=1280
pc.1.target_resolution.height=960
pc.1.vmx_uuid_action=keep
pc.1.net.vnic.1.portgroup.id=lan

############################################

# Win11-OS
pc.2.name=Win11-OS
pc.2.target_resolution.width=1280
pc.2.target_resolution.height=960
pc.2.vmx_uuid_action=keep
pc.2.net.vnic.1.portgroup.id=lan

---

CCNA Cyberops Pod

pod.auto.net.supported=1
pod.auto.net.host.setup.supported=1
pod.auto.net.host.teardown.supported=1

############################################

vswitch.0.name.include.pod_id=1
vswitch.0.name.suffix=SECOPS_VS
vswitch.0.ports=10

vswitch.0.portgroup.0.id=inside
vswitch.0.portgroup.0.name.include.pod_id=1
vswitch.0.portgroup.0.name.suffix=IN_PG
vswitch.0.portgroup.0.vlan.mode=TAGGED
vswitch.0.portgroup.0.vlan.id=1
vswitch.0.portgroup.0.allow_promiscuous=1
vswitch.0.portgroup.0.forged_transmits=1
vswitch.0.portgroup.0.mac_changes=1

vswitch.0.portgroup.1.id=dmz
vswitch.0.portgroup.1.name.include.pod_id=1
vswitch.0.portgroup.1.name.suffix=DMZ_PG
vswitch.0.portgroup.1.vlan.mode=TAGGED
vswitch.0.portgroup.1.vlan.id=2
vswitch.0.portgroup.1.allow_promiscuous=1
vswitch.0.portgroup.1.forged_transmits=1
vswitch.0.portgroup.1.mac_changes=1

vswitch.0.portgroup.2.id=internet
vswitch.0.portgroup.2.name.include.pod_id=1
vswitch.0.portgroup.2.name.suffix=INT_PG
vswitch.0.portgroup.2.vlan.mode=TAGGED
vswitch.0.portgroup.2.vlan.id=3
vswitch.0.portgroup.2.allow_promiscuous=1
vswitch.0.portgroup.2.forged_transmits=1
vswitch.0.portgroup.2.mac_changes=1

############################################

# CyberOps Workstation
pc.1.name=CyberOps Workstation
pc.1.vmx_uuid_action=keep
pc.1.net.vnic.1.portgroup.id=inside

############################################

# Kali
pc.2.name=Kali
pc.2.vmx_uuid_action=keep
pc.2.net.vnic.1.portgroup.id=internet

############################################

# Metasploitable
pc.3.name=Metasploitable
pc.3.vmx_uuid_action=keep
pc.3.net.vnic.1.portgroup.id=dmz
pc.3.net.vnic.2.portgroup.id=dmz

############################################

# Security Onion
pc.4.name=Security Onion
pc.4.vmx_uuid_action=keep
pc.4.net.vnic.1.portgroup.id=inside
pc.4.net.vnic.2.portgroup.id=dmz
pc.4.net.vnic.3.portgroup.id=internet
pc.4.net.vnic.4.portgroup.id=inside

############################################

# WinClient
pc.5.name=WinClient
pc.5.vmx_uuid_action=keep
pc.5.net.vnic.1.portgroup.id=inside

pod.auto.net.supported=1
pod.auto.net.host.setup.supported=1
pod.auto.net.host.teardown.supported=1
pod.auto.net.control_switch.vlans=C,D

pc.1.net.vnic.1.vlan=C
pc.2.net.vnic.1.vlan=D

---

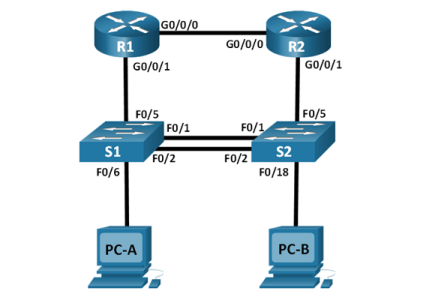

Multi-Device Pod

pod.auto.net.supported=1
pod.auto.net.host.setup.supported=1
pod.auto.net.host.teardown.supported=1
pod.auto.net.control_switch.vlans=C,D

pc.1.net.vnic.1.vlan=C
pc.2.net.vnic.1.vlan=D

csw.rcpn.0.peer.name=R1
csw.rcpn.0.peer.intf=E0
csw.rcpn.0.peer.type=ROUTER

csw.rcpn.1.peer.name=R2
csw.rcpn.1.peer.intf=E0
csw.rcpn.1.peer.type=ROUTER

csw.rcpn.4.peer.name=S1
csw.rcpn.4.peer.intf=E6
csw.rcpn.4.peer.type=SWITCH

csw.rcpn.5.peer.name=S2
csw.rcpn.5.peer.intf=E18
csw.rcpn.5.peer.type=SWITCH

---

VMware DVC-CTS Pod

############################################

pod.requires.vm_same_host=1
pod.requires.vm_types=AVMI,ABSENT

pod.auto.net.supported=1
pod.auto.net.host.setup.supported=1
pod.auto.net.host.teardown.supported=1

############################################

vswitch.0.name.include.pod_id=1
vswitch.0.name.suffix=VCTADCV7_VS
vswitch.0.ports=12

vswitch.0.portgroup.0.id=management
vswitch.0.portgroup.0.name.include.pod_id=1
vswitch.0.portgroup.0.name.suffix=DCV_MGT_PG
vswitch.0.portgroup.0.vlan.mode=TAGGED
vswitch.0.portgroup.0.vlan.id=1
vswitch.0.portgroup.0.allow_promiscuous=1
vswitch.0.portgroup.0.forged_transmits=1
vswitch.0.portgroup.0.mac_changes=1

vswitch.0.portgroup.1.id=production
vswitch.0.portgroup.1.name.include.pod_id=1
vswitch.0.portgroup.1.name.suffix=DCV_PROD_PG
vswitch.0.portgroup.1.vlan.mode=TAGGED
vswitch.0.portgroup.1.vlan.id=10
vswitch.0.portgroup.1.allow_promiscuous=1
vswitch.0.portgroup.1.forged_transmits=1
vswitch.0.portgroup.1.mac_changes=1

vswitch.0.portgroup.2.id=vmotion
vswitch.0.portgroup.2.name.include.pod_id=1
vswitch.0.portgroup.2.name.suffix=DCV_VMO_PG
vswitch.0.portgroup.2.vlan.mode=TAGGED
vswitch.0.portgroup.2.vlan.id=20
vswitch.0.portgroup.2.allow_promiscuous=1
vswitch.0.portgroup.2.forged_transmits=1
vswitch.0.portgroup.2.mac_changes=1

############################################

### pc.same_runtime_host_required=1
### pc.boot.order=1 5 2 3 4

############################################

# sa-aio
pc.1.name=sa-aio
pc.1.vmx_uuid_action=keep
pc.1.target_resolution.width=800
pc.1.target_resolution.height=600
pc.1.net.vnic.1.portgroup.id=management
pc.1.net.vnic.2.portgroup.id=production

############################################

# sa-esxi-01
pc.2.name=sa-esxi-01
pc.2.vmx_vhv_enable=1
pc.2.vmx_uuid_action=keep
pc.2.target_resolution.width=800
pc.2.target_resolution.height=600
pc.2.net.vnic.1.portgroup.id=management
pc.2.net.vnic.2.portgroup.id=production
pc.2.net.vnic.3.portgroup.id=vmotion

############################################

# sa-esxi-02
pc.3.name=sa-esxi-02
pc.3.vmx_vhv_enable=1
pc.3.vmx_uuid_action=keep
pc.3.target_resolution.width=800
pc.3.target_resolution.height=600
pc.3.net.vnic.1.portgroup.id=management
pc.3.net.vnic.2.portgroup.id=production
pc.3.net.vnic.3.portgroup.id=vmotion

############################################

# sa-student
pc.4.name=sa-student
pc.4.vmx_uuid_action=keep
pc.4.target_resolution.width=1280
pc.4.target_resolution.height=960
pc.4.net.vnic.1.portgroup.id=management

############################################

# sa-vcsa
pc.5.name=sa-vcsa
pc.5.vmx_uuid_action=keep
pc.5.target_resolution.width=800
pc.5.target_resolution.height=600
pc.5.net.vnic.1.portgroup.id=management
