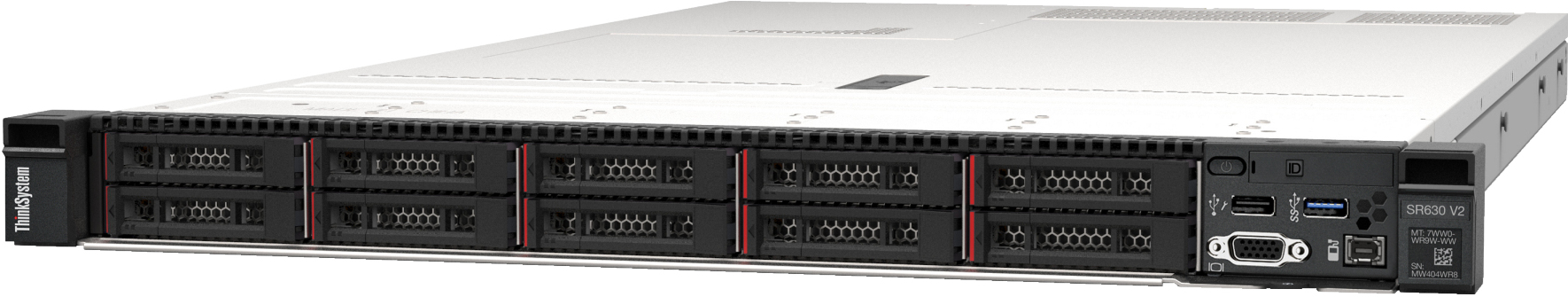

Lenovo SR630V2¶
Management Server¶
The management server is used to host the following components:
NDG NETLAB+ VE Appliance
Staging pods and custom pod development
NDG Python SDK Virtual Development Environment (optional)
Proxmox Backup Server (optional)
Component |
Quantity |
Specification |
Comments |
|---|---|---|---|
Model |
1 |
||
Chassis |
1 |
ThinkSystem 1U 10x 2.5” Chassis |
|
CPU |
2 |
||
Memory |
2 |
64GB TruDDR4 3200MHz RDIMMs |
128GB Total |
OS Storage |
2 |
M.2 240GB SATA 6Gbps SSD |
Configured in RAID 1 |
VM Storage |
4 |
2.5” PM1653 960GB Read Intensive SAS 24Gb HS SSD |
ThinkSystem RAID 930-16i 4GB Flash PCIe 12Gb Adapter |
Network |
1 |
Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter |
|
Network |
1 |
Broadcom 5719 1GbE 4-port PCIe Ethernet Adapter |
|
Management |
1 |
Lenovo XClarity Controller (XCC) |
|
Power Supplies |
2 |
1100W Platinum Hot Swap Power Supplies |
230/115 VAC |
Power Cords |
2 |
As required for country and voltage |
See Power Cords |
Rails |
1 |
ThinkSystem Toolless Slide Rail Kit v2 |
|
Support |
3 Year Support |
Standard Server¶
The standard server is used for hosting user virtual machines.
Component |
Quantity |
Specification |
Comments |
|---|---|---|---|
Model |
1 |
||
Chassis |
1 |
ThinkSystem 1U 10x 2.5” Chassis |
|
CPU |
2 |
||
Memory |
8 |
64GB TruDDR4 3200MHz RDIMMs |
512GB Total |
OS Storage |
2 |
M.2 5400 PRO 240GB Read Intensive SATA 6Gb NHS SSD |
Configured in RAID 1 |
VM Storage |
2 |
U.2 PM1733 7.68TB Entry NVMe PCIe 4.0 x4 Hot Swap SSD |
|
Network |
1 |
Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter |
|
Network |
1 |
Broadcom 5719 1GbE 4-port PCIe Ethernet Adapter |
|
Management |
1 |
Lenovo XClarity Controller (XCC) |
|
Power Supplies |
2 |
1100W Platinum Hot Swap Power Supplies |
230/115 VAC |
Power Cords |
2 |
As required for country and voltage |
See Power Cords |
Rails |
1 |
ThinkSystem Toolless Slide Rail Kit v2 |
|
Support |
3 Year Support |
High Performance Server¶
The high performance server is used for hosting user virtual machines.
Component |
Quantity |
Specification |
Comments |
|---|---|---|---|
Model |
1 |
||
Chassis |
1 |
ThinkSystem 1U 10x 2.5” Chassis |
|
CPU |
2 |
||
Memory |
12 |
64GB TruDDR4 3200MHz RDIMMs |
768GB Total |
OS Storage |
2 |
M.2 5400 PRO 240GB Read Intensive SATA 6Gb NHS SSD |
Configured in RAID 1 |
VM Storage |
2 |
U.2 PM1733 7.68TB Entry NVMe PCIe 4.0 x4 Hot Swap SSD |
|
Network |
1 |
Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter |
|
Network |
1 |
Broadcom 5719 1GbE 4-port PCIe Ethernet Adapter |
|
Management |
1 |
Lenovo XClarity Controller (XCC) |
|
Power Supplies |
2 |
1100W Platinum Hot Swap Power Supplies |
230/115 VAC |
Power Cords |
2 |
As required for country and voltage |
See Power Cords |
Rails |
1 |
ThinkSystem Toolless Slide Rail Kit v2 |
|
Support |
3 Year Support |
Power Cords¶
Please refer to the Lenovo Power Cord Documentation
Note
The Lenovo SR630V2 power supplies can operate at different voltages depending on the country of use and the datacenter power infrastructure. Please choose the appropriate power cord for your country and voltage.
Network Adapters for Real Equipment Pods¶
The Broadcom 5719 1GbE 4-port PCIe Ethernet Adapter was selected for its ability to do 10/100/1000 Mbps connections.
When connecting the server to the NDG Master Control Switch, there are a limited number of 1Gbps ports and may require the use of a 10/100Mbps port.
This card could also be used for Internet connections to pods, line rate limiting them at 1Gbps if your institution has a larger Internet connection rate.
The Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter does NOT support 10/100 Mbps connections.
